とりあえずものを表示させてみる
- セルの設定を行う
- identifier の設定
- セルのクラスの設定
- 描画のためのコード
- NSObject, UITableViewDataSource
セルの設定
セルに identifier を設定する
カスタムクラスがあるならそれの設定も
(サンプルには載っていないけど、今回はラベルを幾つか配置しているのでカスタムクラスでやっている)

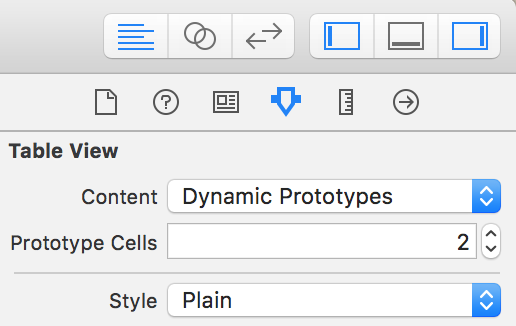

セルの種類が幾つかある場合は、 Prototype Cells の数を増やすと設定できるようになる
outlet の設定
tableView を outlet でコードに紐付ける
tableView を右クリックすると outlet のやつが出てくるので、 Referencing Outlets の部分から右側のコードまで引っ張って紐づけを行う
右側のコードが別なやつだった場合は右上のパンくずリストみたいなやつから選びなおせる
描画のためのコード
if resultsDataSource == nil { resultsDataSource = ResultsDataSource() resultsTable.dataSource = resultsDataSource }
tableView に dataSource を設定する
ViewController に UITableViewDataSource を実装する、というサンプルが結構あるが、これは ViewController が一つの TableView しかもっていない場合に適切なもので、中に他のコンポーネントがある場合は別なクラスにするのが良いはず
というわけで DataSource クラスは別に用意する
import Foundation import UIKit class ResultsDataSource: NSObject, UITableViewDataSource { private let tasks = [0,1,2,3] func tableView(tableView: UITableView, cellForRowAtIndexPath indexPath: NSIndexPath) -> UITableViewCell { switch indexPath.section { case 0: return taskCell(tableView, indexPath: indexPath) case 1: return timeCell(tableView, indexPath: indexPath) default: return tableView.dequeueReusableCellWithIdentifier("time", forIndexPath: indexPath) } } private func taskCell(tableView: UITableView, indexPath: NSIndexPath) -> UITableViewCell { let task = tasks[indexPath.row] let cell = tableView.dequeueReusableCellWithIdentifier("task", forIndexPath: indexPath) if let taskCell = cell as? ResultTaskCell { // セルの描画 } return cell } private func timeCell(tableView: UITableView, indexPath: NSIndexPath) -> UITableViewCell { let cell = tableView.dequeueReusableCellWithIdentifier("time", forIndexPath: indexPath) if let timeCell = cell as? ResultTimeCell { // セルの描画 } return cell } func numberOfSectionsInTableView(tableView: UITableView) -> Int { return 2 } func tableView(tableView: UITableView, numberOfRowsInSection section: Int) -> Int { if section > 0 { return 2 } else { return tasks.count } } }
セクション二つの構成
最初のセクションは二行、もう一つのセクションはタスクの数だけ表示
という構成
func tableView(tableView: UITableView, cellForRowAtIndexPath indexPath: NSIndexPath) -> UITableViewCell
が肝
tableView.dequeueReusableCellWithIdentifier("time", forIndexPath: indexPath)
でセルを取得if let timeCell = cell as? ResultTimeCell
で目的のクラスにして描画
dequeueReusableCellWithIdentifier
の第一引数には、先に設定しておいた identifier を指定する
カスタムクラスを使用する設定にしておくと、このクラスにキャスト出来るようになる
これで、とりあえず表示だけはなんとかなるはず
あとはタップされたら何かする、とかだけれど、それは DataSource ではなくて Delegate でやるんだよね・・・
今回は TableView でそういうアクションをやらなかったのでコードがありません
ものが表示されない・・・というときは
- TableView の背景、 Cell の背景を白、黒以外の色にしよう
- 文字の色を白、黒以外の色にしよう
文字や背景色が親の色と一緒になって見えない、というハマり方をした
あと、 hidden になってたり、他の要素に隠れているのでは?という疑心暗鬼とか
例えば TableView の背景を赤にして、文字色を青にすれば、かなりきつい配色になるので表示されていないならすぐにわかる
